XY-K10
  • XY-K10
  • XY-K10
  • XY-K10
  • Product Specifications
  • Download Attachment

  • Product Name：XY-K10

    • Product Number：5

    Introduction：

    ? Three modes of operation: beam, digital (vortex, kaleidoscope, etc.)

    ? Movement angle: Three-phase motor, automatic reset controlled by microprocessor

    ? Color temperature: 2500-8000k can be linearly adjusted, RGBW color is automatically corrected

    ? Lamp body material: material die-cast aluminum structure

    ?DMX512: 3/5-pin XLR input and output

Prev：XY-600Z

Next：XY-K20

  • Details
  • Image Display

  • POWER SUPPLIES:100-240V 50/60Hz

    INPUT POWER:450VA

    LAMP SOURCE:19 Ostar RGBW LEDs

    LED Nominal Wattage: 15W

    LED Average Life: 50,000 h

    OPTICS:4°-60° Electronic Zoom Range

    EFFECTS SECTION

    Three operating modes: wash, beam, FX (Kaleido effects)

    Bi-directional Rotating Front Lens

    Digital Wash-Beam Framing effect

    Beam edge softening control (in Wash mode)

    Pixel Patterning Macros with enhanced control

    0-100% linear electronic dimmer

    Adjustable speed stop/strobe effect, with instantaneous blackout

    Dedicated channel for color temperature setting

    White CT Emulation 2500-8000K

    RGBW auto-tuning to lamp CT Emulation

    Tungsten Lamp Emulation

    Slow Strobe: 1 flash /sec; Fast Strobe: 25 flash /sec

    CONTROL AND PROGRAMMING

    Control channels: 21/35/78/92/97CH

    DMX protocol signal: USITT DMX 512

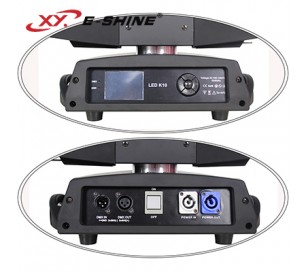

    Display: Graphic LCD backlit b/w Display

    Pan/Tilt Resolution: 16 bit

    Dimmer Resolution: 16 bit

    Movement control: vectorial

    DMX signal connection: 3 XLR input and output  Powercon connection: input and output

    N.W:15KG
